1. High-Stakes Real Life Scenarios: Why Accuracy is Non-Negotiable

In the sanitized environment of a laboratory, it is easy to view a “dilution series” as a mundane task—a repetitive motion of the thumb against a pipette plunger. However, this view obscures the reality that the 2 fold dilution calculator governs the accuracy of data that defines the boundaries of human health and safety. From vaccine development to forensic science, the precision of a halving series is the bedrock of quantification.

When a scientist fails to use a validated method for dilution, the “Butterfly Effect” takes hold: a microliter error in the first tube becomes a 50% variance by the eighth tube, leading to false diagnoses, failed clinical trials, and wasted millions in R&D. Let us examine three real-world contexts where this calculator is vital.

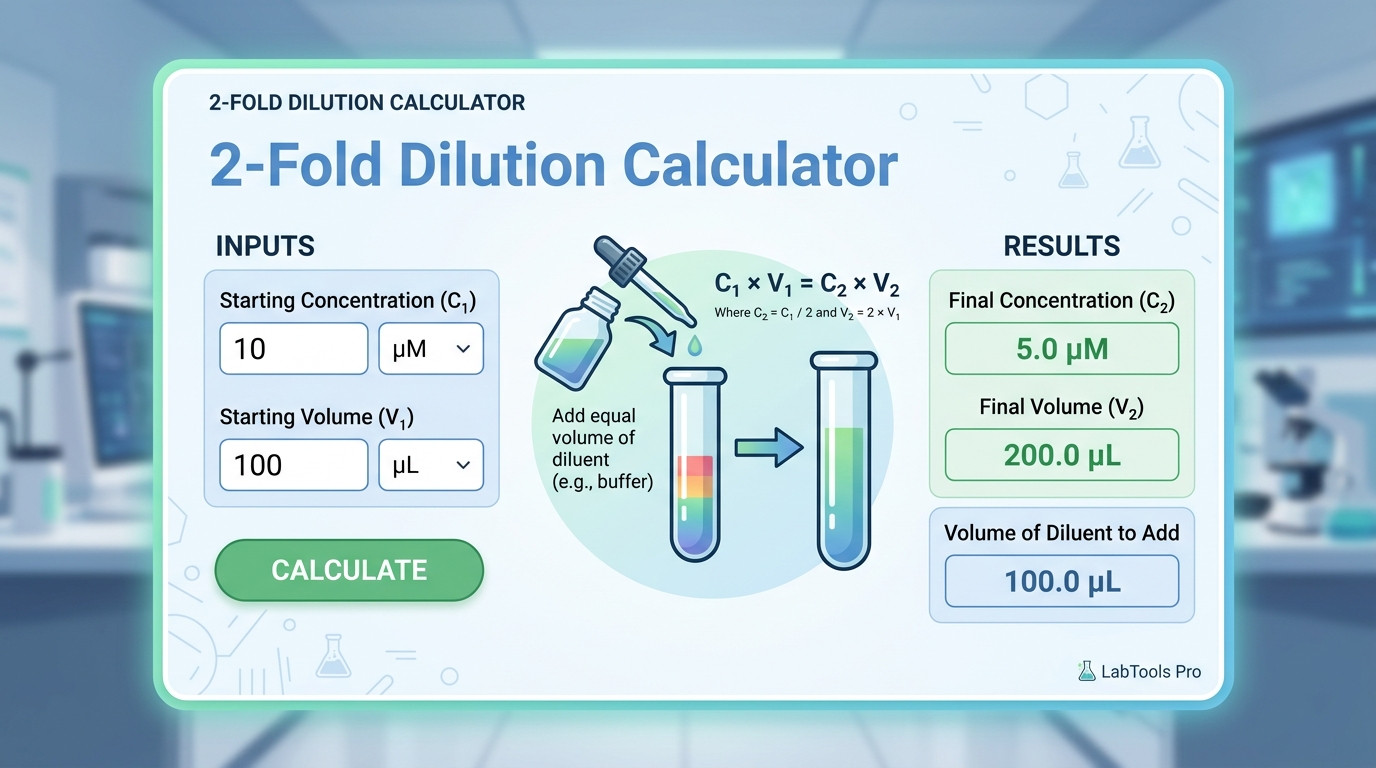

2. Anatomy of a 2 Fold Dilution

A 2 fold dilution is the most fundamental protocol in the life sciences. It is a serial dilution where the concentration of the analyte is reduced by a factor of exactly 2 (halved) at each sequential step.

The Core Components

• Stock Solution ($C_0$): The starting material with the highest concentration.
• Diluent: The buffer, water, or media used to dilute the sample.
• Aliquot ($V_t$): The volume transferred from one tube to the next.
• Dilution Factor (DF): For a 2-fold dilution, DF = 2. This implies 1 part sample + 1 part diluent.

The Geometric Progression

Unlike a linear dilution (e.g., 10, 20, 30, 40), a serial dilution follows a geometric progression. This is critical because biological systems respond to stimuli logarithmically, not linearly.
$$ 100\% \rightarrow 50\% \rightarrow 25\% \rightarrow 12.5\% \rightarrow 6.25\% \rightarrow 3.125\% $$

To achieve this manually, one must meticulously track the volume. Ideally, you want to maintain a constant volume in every tube. The 2 fold dilution calculator calculates the “discard step” at the end to ensure the final tube matches the volume of the previous tubes, preventing meniscus-related reading errors in spectrophotometers.

4. Advanced Mathematical Theory (Log2)

Why do scientists obsess over the 2-fold dilution specifically? Why not 3-fold or 5-fold? The answer lies in Information Theory and the Base-2 Logarithm.

The Formula of Decay

The concentration at any given step $n$ is governed by the power law:

$$ C_n = C_{initial} \times 2^{-(n-1)} $$

This equation represents an exponential decay. When you plot the results of a biological assay (like cell growth or fluorescence) against these concentrations, and then apply a Log2 transformation to the X-axis, the exponential decay becomes a straight line (in the linear range of the assay).

Why Linearization Matters

Linear data is much easier to analyze statistically. It allows for the calculation of the slope (sensitivity of the assay) and the intercept (background noise). Using a 2 fold dilution calculator ensures your data points are perfectly spaced on this Log2 axis. If you used random dilutions (e.g., 100, 80, 40, 10), your data points would be bunched up, leaving gaps in your standard curve and increasing the “Confidence Interval” (error margin) of your results.

5. The Cognitive Load & Manual Risk

Science is an intellectual pursuit, but laboratory work is often a test of endurance and focus.

• The Distraction Factor: A technician pipetting a 96-well plate performs nearly 300 movements. If a colleague asks a question or a timer beeps during the mental math of a dilution, the working memory is interrupted. This leads to the infamous “lost well” syndrome (“Did I add diluent to row D?”).
• Transcription Errors: Manually calculating concentrations (e.g., $0.78125$ µM) and writing them on a tube label often results in rounding errors or illegible handwriting. A 2 fold dilution calculator provides a clear digital table that can be printed and taped into a lab notebook.
• Volume Confusion: The 1:2 ratio requires 1 part sample + 1 part diluent. A common rookie mistake is adding 1 part sample to 2 parts diluent (thinking total volume is 2). This creates a 1:3 dilution series, rendering the experiment useless.

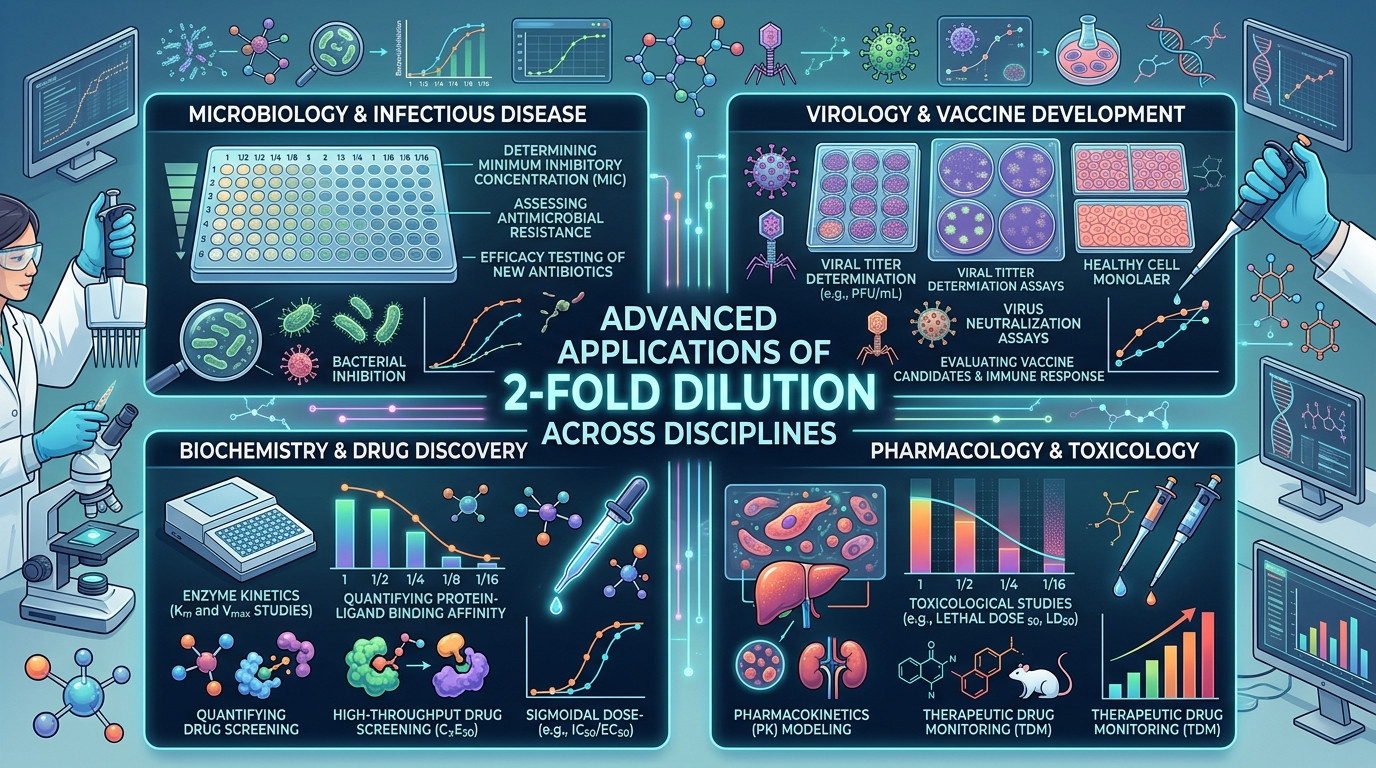

6. The Role in Modern Biotechnology

We are currently in the era of “Lab 4.0”—the digitized, automated laboratory.

Reproducibility Crisis: A major study found that over 50% of preclinical research could not be reproduced. One of the primary culprits was “vague protocols.” “Dilute 1:2” is vague if the starting volumes and techniques aren’t specified. Using a standardized 2 fold dilution calculator creates a digital record of exactly how the dilution was planned, contributing to better science.

Automation Integration: Modern liquid handling robots (like Hamilton or Tecan) need to be programmed. They don’t “know” how to do a dilution; they need coordinates and volumes. The output from a 2 fold dilution calculator provides the exact input parameters needed to program these robots, bridging the gap between human intent and machine execution.

7. Deep Dive: ELISA, MIC & qPCR Protocols

Let’s look at the specific protocols where this calculator is the MVP (Most Valuable Player).

A. ELISA (Enzyme-Linked Immunosorbent Assay)

In an ELISA, you coat a plate with antigen and add patient antibodies. To find the “titer,” you dilute the serum.
The Protocol:
1. Add 100µL of diluent to wells A2 through A12.
2. Add 200µL of patient serum to well A1.
3. Transfer 100µL from A1 to A2. Mix.
4. Transfer 100µL from A2 to A3. Mix.
…and so on.
Why Calculator?: It helps you calculate the precise concentration in Well A7 or A8 instantly, which is often where the “endpoint” lies.

B. MIC (Minimum Inhibitory Concentration)

For testing new antibiotics.
The Protocol: Bacteria are added to tubes with decreasing antibiotic levels.
The Nuance: Antibiotics are often prepared at 100x concentration. The 2 fold dilution calculator helps you plan the dilution of the 100x stock into the 1x working solution before the serial dilution even begins.

C. qPCR Standard Curves

To quantify DNA, you need a standard curve of known DNA copy numbers.
The Challenge: DNA is sticky. It sticks to pipette tips. This is called hysteresis. Using a 2-fold series (rather than 10-fold) minimizes the error introduced by tip sticking because the concentration jump is smaller. The calculator is essential for calculating the exact copy number in each tube (e.g., from 1,000,000 copies down to 15 copies).

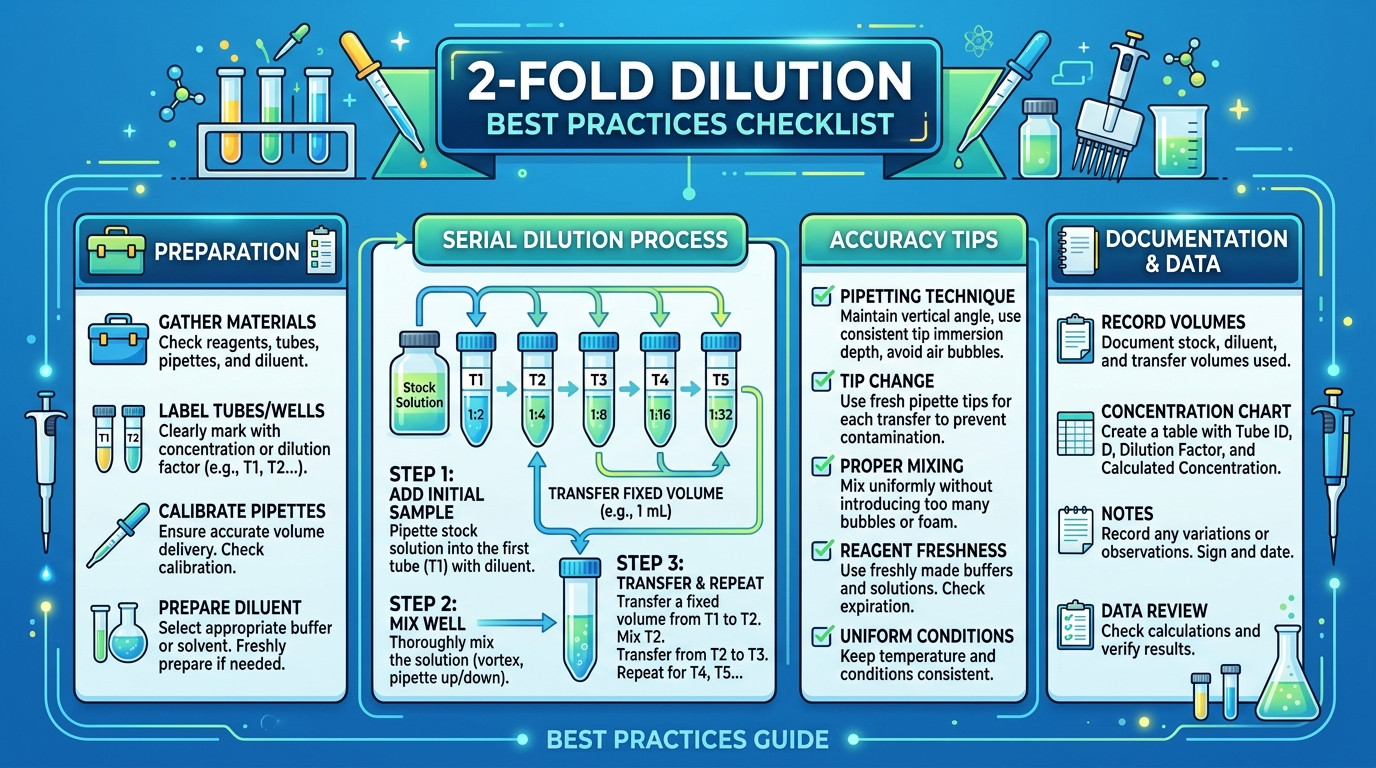

8. Standard Operating Procedure (SOP) Template

For professional labs, consistency is key. Here is a universal SOP for using the 2 fold dilution calculator.

9. The Hydrodynamics of Pipetting

Why do dilutions fail even with perfect math? Physics.

Viscosity & Surface Tension

If you are diluting a viscous liquid (like glycerol or serum) into water, the two fluids do not mix instantly. The viscous liquid sinks to the bottom. If you simply pipette up and down once, you will aspirate mostly water for the next step, breaking the dilution series.
Solution: Vortexing is preferred for viscous liquids. If pipetting, use “Reverse Pipetting” technique.

Carryover (The Silent Killer)

When you dip a tip into a concentrated solution, a microscopic film of liquid coats the outside of the tip. When you move to the next tube (lower concentration), this film dissolves into the solution.
Example: In a 1:100,000 dilution, the carryover on the outside of the tip might contain more molecules than the liquid inside the tip is supposed to deliver.
Solution: The 2-fold dilution is actually safer than 10-fold here because the concentration difference between steps is smaller, making carryover less statistically significant. However, changing tips is still the gold standard.

10. Data Analysis: Sigmoidal Curves

Once you have performed the dilution using the calculator and run your assay, you will have a set of data points (e.g., Optical Density vs. Concentration).

The 4-Parameter Logistic (4PL) Model:
This is the industry standard algorithm for fitting dose-response curves generated by 2-fold dilutions.
It calculates:
1. Min asymptote (Background)
2. Max asymptote (Saturation)
3. Slope (Hill Slope)
4. Inflection Point (IC50 / EC50)

If your dilution series was inaccurate, the $R^2$ of this 4PL fit will drop. A low $R^2$ (< 0.9) usually triggers a "Repeat Assay" deviation in GLP labs. Using the calculator prevents this rework.

11. GLP & Regulatory Compliance (FDA/ISO)

In Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) environments, data integrity is paramount (ALCOA+ principles).

12. Integrated Laboratory Ecosystem

A single tool cannot solve every problem. Build a complete digital workflow by integrating these complementary resources:

• Main Dilution Tool: For calculating the initial $C_1V_1 = C_2V_2$ to prepare the starting stock solution.
• Peptide Reconstitution Tool: Critical for dissolving lyophilized powders before the serial dilution begins.
• Molarity Tool: Essential for converting mass (mg) to molarity (mM), as most 2-fold dilutions are based on molarity.

13. Frequently Asked Questions (FAQs)
