What is the dilution factor at step 5 of a 2-fold series?

The cumulative dilution factor at any step n equals 2 raised to the power n. At step 5, the factor is 2^5 = 32. This means the concentration is 1/32nd of the original. If you started at 128 micrograms per milliliter, step 5 contains 128 divided by 32 equals 4 micrograms per milliliter. The 2 fold dilution calculator computes these values automatically for any number of steps.

Why is the 2-fold dilution preferred over other ratios for MIC testing?

The 2-fold dilution is mandated by CLSI (Clinical and Laboratory Standards Institute) for MIC testing because it provides the finest practical resolution between adjacent concentrations. Each step is exactly double or half the previous one, which aligns with the clinically meaningful breakpoint concentrations used to classify organisms as susceptible, intermediate, or resistant. A coarser dilution (like 5-fold or 10-fold) would skip over important concentration ranges, potentially missing the true MIC by a clinically significant margin.

Can I use any volume for a 2-fold dilution?

Yes. The ratio determines the dilution factor, not the absolute volume. A 2-fold dilution can be 10 microliters into 10 microliters, 100 microliters into 100 microliters, or 5 milliliters into 5 milliliters. The key requirement is that the transfer volume equals the diluent volume (1:1 ratio). However, larger volumes reduce relative pipetting error. The 2 fold dilution calculator accepts any volume and computes the complete series accordingly.

Why must I change pipette tips between every step?

Liquid adhering to the outside of a used pipette tip contains concentrated solution from the previous tube. When inserted into the next tube, this carryover dissolves into the diluent and artificially inflates the concentration beyond the expected halving. The error compounds multiplicatively through every subsequent step. For a 10-step series, carryover can shift the final concentration by 20 to 40 percent from the calculated value. Changing tips between every transfer eliminates this systematic positive bias entirely.

What is a Log2 dilution and why does it matter?

A Log2 dilution is synonymous with a 2-fold dilution. The term refers to the fact that when you apply a base-2 logarithmic transformation to the concentration axis, the exponentially decaying concentrations become evenly spaced linear points. This linearization is crucial for data analysis because it allows standard curve fitting algorithms like the 4-Parameter Logistic model to produce symmetrical sigmoid curves with maximal R-squared values. The 2 fold dilution calculator provides the Log2 value alongside each concentration for direct use in graphing software.

Why do I discard volume from the last tube?

Without discarding, the last tube contains double the volume of all other tubes (because it receives the transfer but has nothing removed). This volume difference affects assay readings that depend on path length, such as spectrophotometric absorbance in microplate readers. Unequal volumes also mean unequal amounts of substrate or reagent per well in enzymatic assays. Discarding the transfer volume from the final tube equalizes all wells to the same volume, ensuring consistent and comparable measurements across the entire plate.

How many steps should a 2-fold dilution series have?

It depends on the assay and the concentration range needed. For MIC testing per CLSI standards, 10 to 12 steps are typical, covering a 1024-fold to 4096-fold range. For ELISA standard curves, 7 to 8 steps provide sufficient data points for reliable 4PL curve fitting. For antibody titer determination, the series continues until no detectable signal remains, often requiring 8 to 16 steps. The 2 fold dilution calculator accepts any number of steps and generates the complete protocol instantly.

Is a 2-fold dilution the same as a 1:2 dilution?

Yes. A 2-fold dilution, 1:2 dilution, and halving dilution all describe the same process: mixing 1 part sample with 1 part diluent to produce 2 total parts at half the original concentration. The dilution factor is 2, meaning the concentration is divided by 2 at each step. The notation 1:2 means 1 part sample in 2 parts total (not 1 part sample plus 2 parts diluent, which would be a 3-fold dilution).

How do I prepare the starting concentration for a 2-fold series?

First determine what concentration you need in the first tube of the series (which is 2 times the highest concentration you want to test, since the first dilution step halves it). Then use C1V1 equals C2V2 to calculate how to prepare that starting concentration from your stock solution. Our general dilution calculator at DilutionsCalculator.com handles this initial stock preparation. The 2 fold dilution calculator then takes over for the serial halving steps.

What is the edge effect in 96-well plates?

The edge effect is accelerated evaporation from wells on the outer perimeter of a microplate during incubation. Peripheral wells lose volume faster than inner wells, changing the effective concentration and path length. This produces systematically different readings in outer wells compared to inner wells. Mitigation strategies include filling edge wells with buffer only (not using them for samples), sealing plates with adhesive film, and using humidified incubators. The 2 fold dilution calculator plans adequate volumes, but physical evaporation management must be handled separately.

Can I use this calculator for cell counting dilutions?

Yes. If a cell suspension is too dense to count on a hemocytometer (typically above 2.5 million cells per milliliter), a 2-fold dilution is the quickest way to bring the density into countable range without over-diluting. Enter your estimated cell concentration as C0 in the 2 fold dilution calculator and determine which step produces a concentration in the 200,000 to 2,500,000 cells per milliliter range optimal for hemocytometer counting.

How does error propagation affect a 2-fold series compared to 10-fold?

Error propagation is actually less severe in 2-fold dilutions compared to 10-fold dilutions for the same total range, because each step involves mixing more similar concentrations. In a 10-fold dilution, the concentration difference between the aspirated liquid and the receiving diluent is 10 to 1; in a 2-fold dilution, it is only 2 to 1. This means that carryover, incomplete mixing, and viscosity mismatches have proportionally smaller effects per step. However, reaching the same total dilution requires more steps (10 two-fold steps versus 3 ten-fold steps for a 1000-fold range), giving errors more opportunities to accumulate.

Where can I find more dilution calculator tools?

Visit DilutionsCalculator.com for a complete suite of free tools including general dilution (C1V1=C2V2), serial dilution table generator, molarity calculator, mg/mL converter, PPM calculator, pharmaceutical dilution, hydrogen peroxide dilution, weight-by-volume, and peptide reconstitution calculators. All tools are free, mobile-responsive, and require no registration.

2 Fold Dilution Calculator: Complete Guide to Halving Serial Dilution Protocols (2025)

Laboratory Protocols & Tools

2 Fold Dilution Calculator: The Definitive Guide to Halving Serial Dilution

Q: What is a 2 fold dilution calculator?

A 2 fold dilution calculator is a digital tool that generates a complete 1:2 serial dilution protocol, calculating the concentration at each step using the formula Cn = C0 × 2^(-n). It outputs a table showing step number, resulting concentration, cumulative dilution ratio, and Log2 transformation for every point in the series. The tool is essential for MIC testing, ELISA standard curves, antibody titer determination, and qPCR efficiency validation, where evenly spaced halving concentrations are the standard protocol.

Q: How does a 2-fold dilution work?

In a 2-fold dilution, you mix equal volumes of sample and diluent at each step. For example, transfer 100 microliters of sample into 100 microliters of diluent, giving a total of 200 microliters at half the original concentration. Then transfer 100 microliters from this tube into the next 100 microliters of diluent, halving the concentration again. Each step reduces concentration by exactly 50 percent, creating a geometric progression: 100, 50, 25, 12.5, 6.25 percent and so on.

Generate protocol-ready 1:2 dilution tables instantly for MIC testing, ELISA standard curves, antibody titers, and qPCR efficiency — with Log2 transformations, step-by-step SOPs, and 15 expert FAQs.

July 2025 CLSI Standard 35 Min Read

1. Why the 2-Fold Dilution Is the Gold Standard of Quantitative Biology

In quantitative biology, pharmacology, and clinical diagnostics, the 2-fold (halving) serial dilution is the most widely used protocol for generating dose-response data, determining antibody titers, and establishing minimum inhibitory concentrations of antimicrobial agents. The 2 fold dilution calculator automates the mathematical planning of these protocols, ensuring that every step produces exactly half the concentration of the previous one — a geometric progression that aligns perfectly with the logarithmic nature of biological responses.

Consider three high-stakes scenarios where precision in the halving series directly determines patient outcomes, drug approvals, and public health decisions:

Pandemic Serology

During COVID-19 surveillance, technicians processed hundreds of patient serum samples daily using 2-fold dilution series to determine neutralizing antibody titers. If mental fatigue caused a 1:2.5 series instead of 1:2, the reported titer would be inaccurate, misleading epidemiologists modeling herd immunity. The 2 fold dilution calculator prevented these errors across millions of global tests.

Drug Discovery (IC₅₀)

Pharmaceutical teams characterizing a novel chemotherapy agent must determine the IC₅₀ — the concentration killing 50% of cancer cells. A 12-point 2-fold dose-response curve is standard. If dilution errors distort the sigmoid, the software cannot fit the 4PL model, and the reported IC₅₀ may falsely classify a toxic drug as safe, with catastrophic consequences in animal trials. The 2 fold dilution calculator ensures mathematical precision from the first pipette stroke.

Antibiotic Resistance (MIC)

Clinical microbiology labs test bacterial isolates against antibiotics using CLSI-mandated 2-fold dilution protocols. The MIC — lowest concentration preventing visible growth — directly determines whether a patient receives a potentially life-saving or ineffective antibiotic. An error in any step of the halving series shifts every downstream concentration, potentially misreporting the MIC by one or more doubling steps.

Scientist using 2 fold dilution calculator while preparing serial dilution in microplate

The 2 fold dilution calculator generates the table that guides every pipetting step in this microplate.

This guide covers the complete theory and practice: mathematical foundations including the Log2 transformation, a free protocol-generating calculator, three application-specific walkthroughs (MIC, ELISA, titer), a printable SOP, pipetting best practices, data analysis guidance, and 15 detailed FAQs. For 10-fold dilution work, our serial dilution calculator handles any factor, and our general dilution calculator covers C₁V₁=C₂V₂ stock preparation.

2. Anatomy of a 2-Fold Dilution Series

A 2-fold dilution halves the concentration at every step by mixing equal volumes of sample and diluent (1:1 ratio). The dilution factor is 2, making it the finest-resolution serial dilution commonly used in laboratory work.

Transfer Volume (Vₜ): The amount moved from each tube to the next. In a 2-fold dilution, Vₜ equals the diluent volume.
Diluent Volume (V_d): Equal to Vₜ. Pre-loaded into each receiving tube before serial transfer begins.
Total Volume: Vₜ + V_d = 2 × Vₜ. After transfer and mixing, each tube contains double the transfer volume.
Geometric Progression: 100% → 50% → 25% → 12.5% → 6.25% → 3.125%…

Agar plates with colonies from 2 fold dilution calculator protocol

Countable colonies from the halving series.

Test tubes arranged for 2 fold dilution calculator serial transfer

Labeled tubes ready for 1:2 transfers.

Calibrated micropipette for executing 2 fold dilution calculator volumes

Calibrated pipettes ensure halving accuracy.

3. The Mathematics — Why Log2 Is the Natural Scale

$$ C_n = C_0 \times 2^{-n} $$

Where Cₙ is concentration at step n, C₀ is the starting concentration, and n is the step number (1, 2, 3…). The 2 fold dilution calculator applies this formula to populate every row of the output table.

Log2 Transformation

When you plot biological response (absorbance, fluorescence, cell viability) against the raw concentrations from a 2-fold series, the curve is exponentially compressed on the left side. Applying a Log₂ transformation to the x-axis converts the exponential decay into evenly spaced linear points — essential for proper 4-Parameter Logistic curve fitting. The 2 fold dilution calculator provides the Log₂ value alongside each concentration for direct import into graphing software like GraphPad Prism or Gen5.

$$ \text{Log}_2(\text{Dilution Factor at step } n) = n $$

Step 1 → Log₂(2) = 1. Step 5 → Log₂(32) = 5. Step 10 → Log₂(1024) = 10. This perfect linearity is why the 2-fold system is preferred for dose-response analysis.

Mathematical formulas for 2 fold dilution calculator geometric progression on whiteboard

The Log2 transformation converts exponential decay into linear spacing — the key advantage of the 2-fold system.

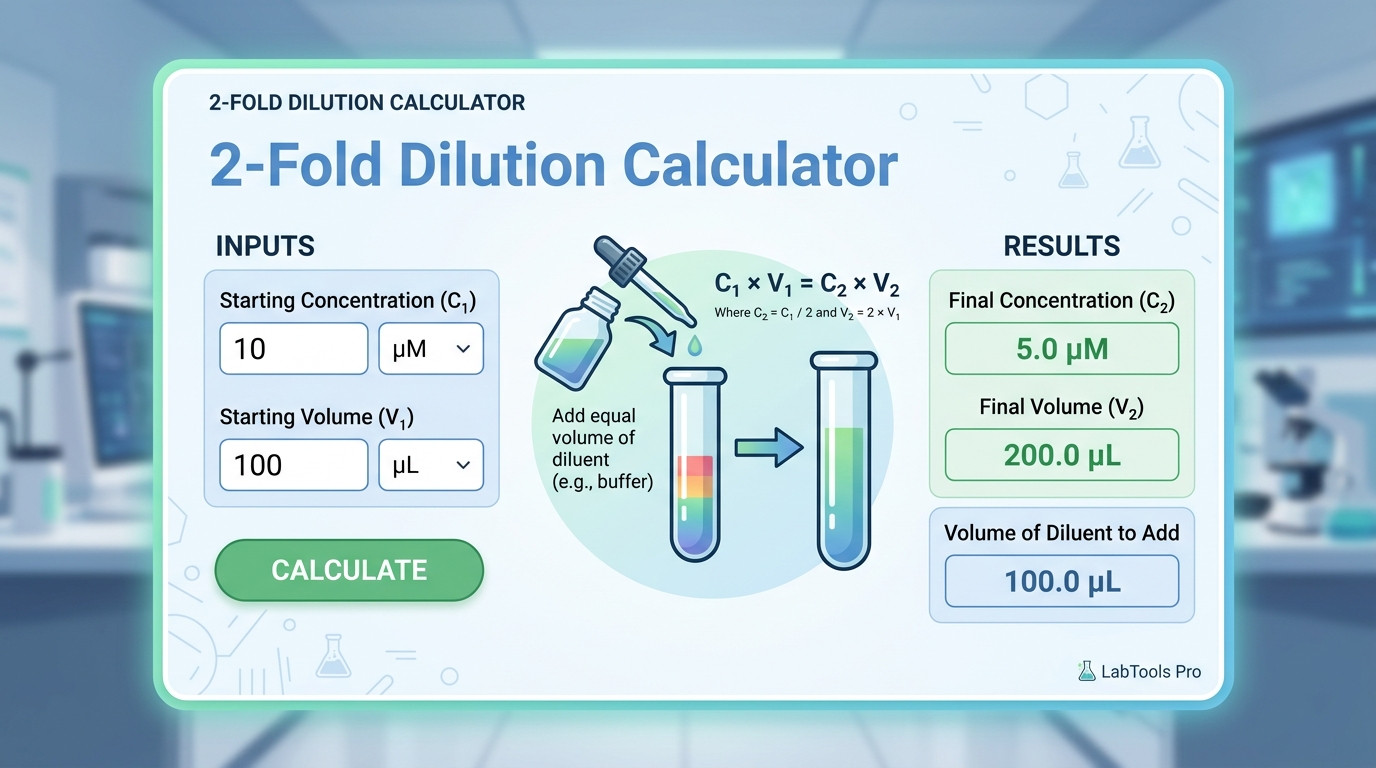

4. Free 2 Fold Dilution Calculator

Enter your starting concentration, volume per well/tube, and number of steps. The 2 fold dilution calculator generates a complete protocol table with concentrations, cumulative dilution ratios, and Log₂ values at every step — ready to print and take to the bench.

2 Fold Dilution Calculator

Starting Concentration (C₀)

Volume per Well (µL)= Transfer Vol = Diluent Vol

Number of Steps

Your 2-Fold Dilution Protocol

Transfer: — µL | Diluent: — µL | Discard from last tube: — µL

Step	Concentration	Cumulative Ratio	Log₂

5. Application: MIC Testing (CLSI Protocol)

The Minimum Inhibitory Concentration assay uses a 2-fold dilution of antibiotic across a 96-well microplate row. The 2 fold dilution calculator generates the exact concentrations mandated by CLSI M07 guidelines: typically 128, 64, 32, 16, 8, 4, 2, 1, 0.5, 0.25, 0.125, 0.0625 µg/mL in 12 steps. Each well is then inoculated with a standardized bacterial suspension. After 18–24 hours at 35°C, the MIC is the lowest concentration showing no visible growth. This value directly determines antibiotic prescribing decisions — a one-step error could mean the difference between “susceptible” and “resistant” classification.

96-well MIC microplate prepared with 2 fold dilution calculator protocol

Each column represents one step of the 2-fold series; the MIC is read where turbidity disappears.

6. Application: ELISA Standard Curves

ELISA quantification requires a standard curve of known analyte concentrations. A 7–8 point 2-fold series (e.g., 500, 250, 125, 62.5, 31.25, 15.625, 7.8125 pg/mL) produces evenly spaced points on the Log₂ axis, enabling reliable 4PL sigmoid curve fitting with R² > 0.99. The 2 fold dilution calculator pre-computes these values, eliminating the rounding errors that occur when technicians calculate 7.8125 mentally while simultaneously pipetting. For the initial stock preparation, our molarity calculator converts mass to concentration.

7. Application: Antibody Titer Determination

Serological titers measure the highest dilution of patient serum that still produces a detectable signal. Starting with neat (undiluted) serum, the 2 fold dilution calculator generates a series: 1:2, 1:4, 1:8, 1:16, 1:32, 1:64, 1:128, 1:256… The titer is reported as the reciprocal of the highest reactive dilution (e.g., “titer = 128” means the 1:128 dilution was the last positive). This reporting convention has been standard since the early 20th century and remains fundamental to vaccine immunogenicity studies, transplant compatibility testing, and infectious disease diagnostics.

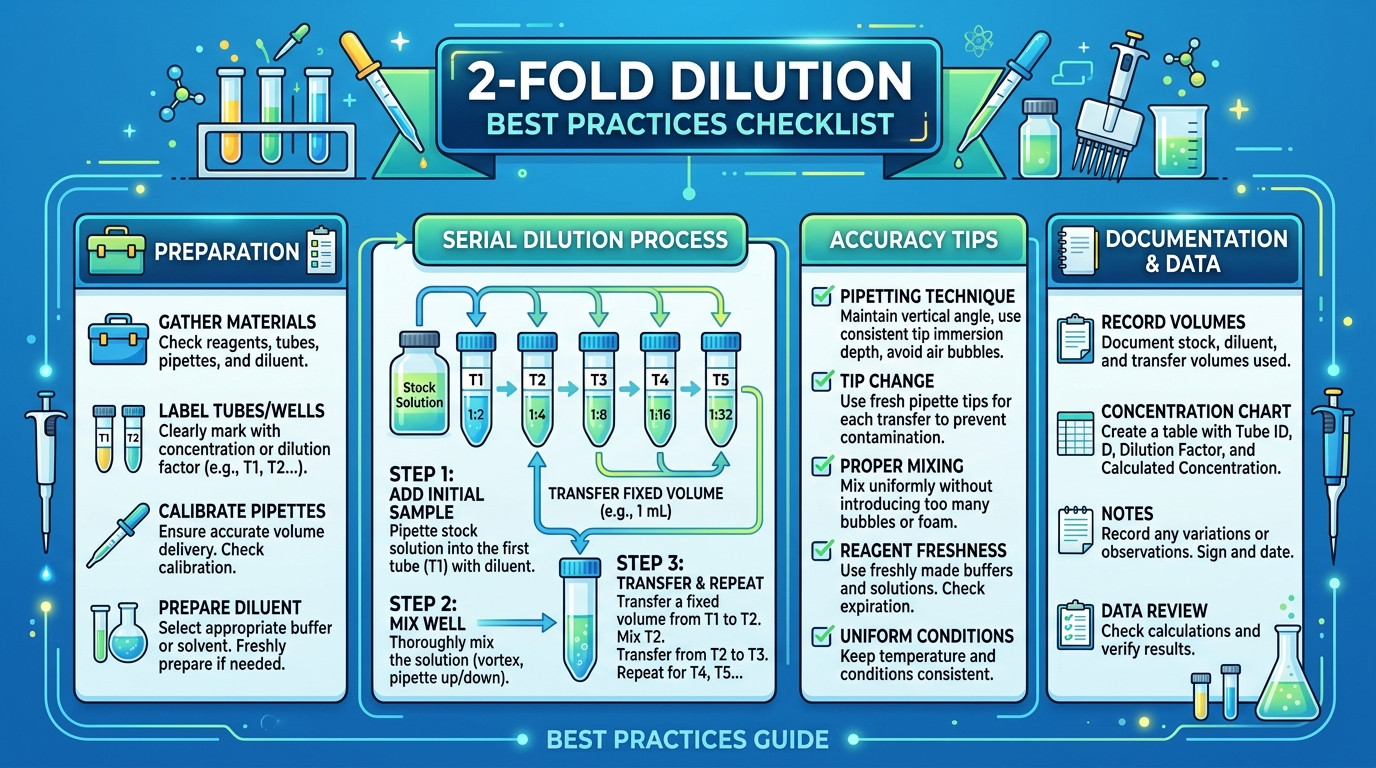

8. Step-by-Step Standard Operating Procedure

Generate the table using the 2 fold dilution calculator above. Print it.
Label all tubes/wells with step numbers matching the table rows.
Pre-fill all receiving tubes with the diluent volume (equal to the transfer volume).
Add stock/sample to tube 1 at 2× the desired starting concentration.
Transfer Vₜ from tube 1 to tube 2. Mix by pipetting up-down 5× or vortexing 3 seconds.
Change tip. Transfer Vₜ from tube 2 to tube 3. Mix. Change tip. Repeat.
Discard Vₜ from the final tube to equalize volumes across all wells.
Proceed to assay (add bacteria for MIC, add reagents for ELISA, etc.) within 30 minutes.

Documented 2 fold dilution calculator protocol attached to laboratory notebook

The printed 2 fold dilution calculator output serves as both protocol guide and regulatory documentation.

9. Pipetting Technique & Error Control

The 2-fold dilution is less susceptible to carryover error than the 10-fold dilution because the concentration difference between adjacent steps is only 2:1 instead of 10:1. However, errors still compound multiplicatively. A 2% pipetting error per step produces (1.02)¹⁰ − 1 ≈ 22% cumulative deviation after 10 steps. Mitigation requires annual pipette calibration per ISO 8655, fresh tips at every step, thorough mixing (5× aspiration cycles or 3-second vortex), and volumes ≥50 µL to minimize relative error.

The 1:2 vs 1:3 Confusion

The most common rookie error: 1:2 means 1 part sample IN 2 total parts (1 sample + 1 diluent). It does NOT mean 1 part sample + 2 parts diluent (which would be a 1:3 or 3-fold dilution). The 2 fold dilution calculator eliminates this confusion by explicitly stating both transfer and diluent volumes — always equal for a true 2-fold series.

10. Data Analysis — Fitting the 4PL Sigmoid

Biological dose-response data from a 2-fold dilution series produces a sigmoidal (S-shaped) curve, not a straight line. The industry-standard fitting model is the 4-Parameter Logistic (4PL), which calculates: (A) minimum asymptote, (B) Hill slope, (C) inflection point (EC₅₀ or IC₅₀), and (D) maximum asymptote. The quality of the fit (R² > 0.99) depends entirely on the accuracy of the x-axis values — your concentrations. If the 2 fold dilution calculator was used correctly and the physical execution was precise, the data points will fall cleanly on the sigmoid, producing reliable EC₅₀/IC₅₀ values for regulatory submission.

11. Common Mistakes That Ruin 2-Fold Dilutions

1:3 instead of 1:2: Adding 1 part sample to 2 parts diluent (total 3) is a 3-fold dilution, not 2-fold.
Reusing tips: Carryover inflates downstream concentrations beyond the calculated values.
Poor mixing: Viscous samples (serum, glycerol) sink; aspirating from the top transfers mostly diluent.
Not discarding from the last tube: Creates unequal volumes, affecting spectrophotometric readings.
Uncalibrated pipettes: 5% systematic error → 40% cumulative error after 10 steps.
Delayed plating: Cells/proteins degrade in dilute suspension. Use the prepared series within 30 minutes.

Related Tools

General Dilution Calculator
C₁V₁=C₂V₂ for stock preparationOpen
Serial Dilution Calculator
Any factor (2, 3, 5, 10-fold)Open
Molarity Calculator
Mass-to-molar for C₀ verificationOpen

12. Frequently Asked Questions

1. What is a 2 fold dilution calculator?

A 2 fold dilution calculator generates a complete 1:2 serial dilution protocol, computing concentration, cumulative dilution ratio, and Log₂ transformation at every step using the formula Cₙ = C₀ × 2⁻ⁿ. It is essential for MIC testing, ELISA standard curves, antibody titers, and dose-response analysis where evenly spaced halving concentrations are the standard protocol mandated by organizations like CLSI and FDA.

2. How does a 2-fold dilution work physically?

Mix equal volumes of sample and diluent at each step: transfer 100 µL into 100 µL of diluent (total 200 µL at half concentration). Transfer 100 µL from this to the next 100 µL of diluent. Each step halves the concentration, creating a geometric progression. The 2 fold dilution calculator computes these volumes and resulting concentrations automatically.

3. What is the dilution factor at step 5?

2⁵ = 32. The concentration is 1/32nd of the original. If C₀ = 128 µg/mL, step 5 = 4 µg/mL. The 2 fold dilution calculator displays this for every step alongside the Log₂ value (which equals 5 at step 5).

4. Why is 2-fold preferred for MIC testing?

CLSI mandates 2-fold because it provides the finest practical resolution between clinically meaningful antibiotic breakpoints. Each step is exactly double or half, aligning with the doubling concentrations used to classify susceptible/intermediate/resistant. Coarser dilutions (5-fold, 10-fold) would skip important ranges, potentially missing the true MIC by a clinically significant margin that changes treatment decisions.

5. Can I use any volume?

Yes — the ratio determines the factor, not the volume. 10+10 µL, 100+100 µL, or 5+5 mL all produce 2-fold dilutions. Larger volumes reduce relative pipetting error. The 2 fold dilution calculator accepts any volume and computes the complete series.

6. Why change tips between steps?

Liquid on the tip exterior carries concentrated solution into the next tube, inflating concentrations beyond the calculated halving. This compounds multiplicatively — after 10 steps, carryover can shift the final concentration by 20–40%. Fresh tips eliminate this systematic positive bias entirely. The 2 fold dilution calculator assumes ideal transfers; contaminated tips violate this assumption.

7. What is a Log2 dilution?

Synonymous with 2-fold dilution. Log₂ refers to the base-2 logarithmic transformation that converts exponentially decaying concentrations into evenly spaced linear points — essential for 4PL sigmoid curve fitting in dose-response analysis. The 2 fold dilution calculator provides Log₂ values alongside concentrations for direct import into graphing software.

8. Why discard volume from the last tube?

Without discarding, the last tube has double the volume of all others (receives transfer but has nothing removed). This affects spectrophotometric path length, substrate amounts in enzymatic assays, and general well-to-well consistency. Discarding equalizes volumes for comparable measurements across the entire plate.

9. How many steps should my series have?

MIC: 10–12 steps (1024× to 4096× range). ELISA: 7–8 steps. Antibody titers: 8–16 steps (until signal disappears). The 2 fold dilution calculator accepts 1–20 steps and generates the complete table instantly. More steps = wider range but more pipetting error opportunities.

10. Is 1:2 the same as 2-fold?

Yes. 1:2 means 1 part sample in 2 total parts. Dilution factor = 2. This is NOT 1 part + 2 parts (which = 1:3 = 3-fold). The most common error in serial dilution is confusing the ratio notation. The 2 fold dilution calculator eliminates this by specifying transfer and diluent volumes explicitly — always equal for a true halving series.

11. How do I prepare the starting concentration?

Determine C₀ for the first tube, then use C₁V₁=C₂V₂ to prepare it from your stock. Our dilution calculator handles this step. The 2 fold dilution calculator then takes over for the serial halving. Tip: if you want 128 µg/mL as the highest test concentration, prepare C₀ at 256 µg/mL (2× the desired maximum) because the first halving step produces 128.

12. What is the edge effect in microplates?

Peripheral wells evaporate faster during incubation, changing effective concentration and volume. Mitigation: fill edge wells with buffer only, seal plates with adhesive film, use humidified incubators. The 2 fold dilution calculator plans volumes, but evaporation management is a physical lab technique separate from the mathematical protocol.

13. Can I use this for cell counting?

Yes. If a suspension exceeds hemocytometer range (~2.5M cells/mL), a 2-fold dilution is the quickest way to reach countable density without over-diluting. Enter estimated concentration in the 2 fold dilution calculator to find which step produces the optimal 200K–2.5M range.

14. How does error compare to 10-fold dilutions?

Per-step error is lower in 2-fold because the concentration difference (2:1) is smaller than in 10-fold (10:1), making carryover and mixing errors proportionally less impactful. However, reaching the same total range requires more steps (10 two-fold steps vs. 3 ten-fold steps for 1000×), giving errors more opportunities to accumulate. Net result: comparable total error, but 2-fold provides finer resolution.

15. Where can I find more calculators?

Visit DilutionsCalculator.com for serial dilution, molarity, mg/mL, PPM, pharmaceutical, and peptide reconstitution calculators — all free, no registration.

13. Conclusion — Precision in Every Halving Step

The 2-fold serial dilution appears deceptively simple — just mix equal parts and halve. Yet this elegant protocol underpins the quantitative backbone of clinical microbiology (MIC determination), immunology (antibody titers), pharmacology (IC₅₀/EC₅₀ curves), and molecular biology (qPCR efficiency). The 2 fold dilution calculator transforms the mathematical planning from a cognitive burden into an instant, verified output, freeing the scientist to focus entirely on physical technique — proper mixing, fresh tips, and timely plating.

This guide has covered the geometric progression formula, the Log₂ transformation that makes 2-fold data uniquely suited for sigmoidal curve fitting, a free protocol-generating calculator, three application-specific walkthroughs, a printable SOP, pipetting error analysis, and 15 detailed FAQs. The key takeaway: a 2-fold dilution is only as good as its execution, and the execution is only as good as its planning. Let the 2 fold dilution calculator handle the planning so your hands can handle the science.

Bookmark this page and our complete calculator suite for instant access to verified protocols at every bench session.
