Microbiology Serial Dilution Example: Complete Guide with Worked Examples
Master bacterial plate counting with 7 real-world worked examples, a free CFU calculator, step-by-step bench protocols, and 15 expert FAQs for clinical, food, environmental, and research microbiology.
1. Introduction — The Foundation of Quantitative Microbiology
In every microbiology laboratory—clinical, environmental, food safety, and research—the ability to accurately count microorganisms is fundamental. A single milliliter of an overnight bacterial culture can contain over one billion cells. A gram of healthy topsoil harbors hundreds of millions. These concentrations are far too dense for any instrument to measure directly: spectrophotometers saturate, microscope fields become indistinguishable lawns, and flow cytometers clog. The solution to this measurement problem is the serial dilution followed by plate counting, and this guide presents the definitive collection of microbiology serial dilution example protocols for every major application.
The concept is elegant in its simplicity. You take the concentrated sample and sequentially dilute it through a series of tubes, each reducing the cell density by a fixed factor—typically tenfold. After several steps, the concentration drops from billions per milliliter to tens or hundreds, a range where individual cells can land on an agar plate, grow into visible colonies, and be counted. By multiplying the colony count by the dilution factor, you calculate the original concentration. Every microbiology serial dilution example in this guide follows this same logic, adapted to the specific requirements of different sample types and regulatory frameworks.
This guide provides seven complete worked examples covering E. coli plate counts, drinking water coliform testing, food product aerobic plate counts, soil bacteria enumeration, antibiotic MIC determination, clinical urine cultures, and viral plaque assays. We also embed a free CFU calculator, present the core mathematical formulas, outline a detailed bench procedure, identify the most common errors, and answer fifteen frequently asked questions. For the underlying dilution mathematics applicable to all chemistry and biology, our serial dilution calculator generates complete protocols automatically.
2. Why Serial Dilution Is Essential in Microbiology
Standard laboratory instruments cannot directly quantify dense microbial populations. A spectrophotometer measuring optical density (OD600) becomes unreliable above approximately 10⁷ cells/mL due to nonlinear Beer-Lambert behavior. A hemocytometer slide under a microscope cannot resolve individual cells when they overlap. The serial dilution technique solves this by creating a series of progressively more dilute suspensions until the concentration falls into the “countable range” of 30 to 300 colonies per standard agar plate.
The technique applies across every subdiscipline of microbiology. Clinical laboratories quantify bacterial loads in patient specimens to guide antibiotic therapy. Food safety laboratories test products against regulatory limits set by the FDA and USDA. Environmental laboratories monitor drinking water quality per EPA standards. Research laboratories construct growth curves, determine kill kinetics, and measure mutation frequencies. In every case, the microbiology serial dilution example protocol is the starting point.

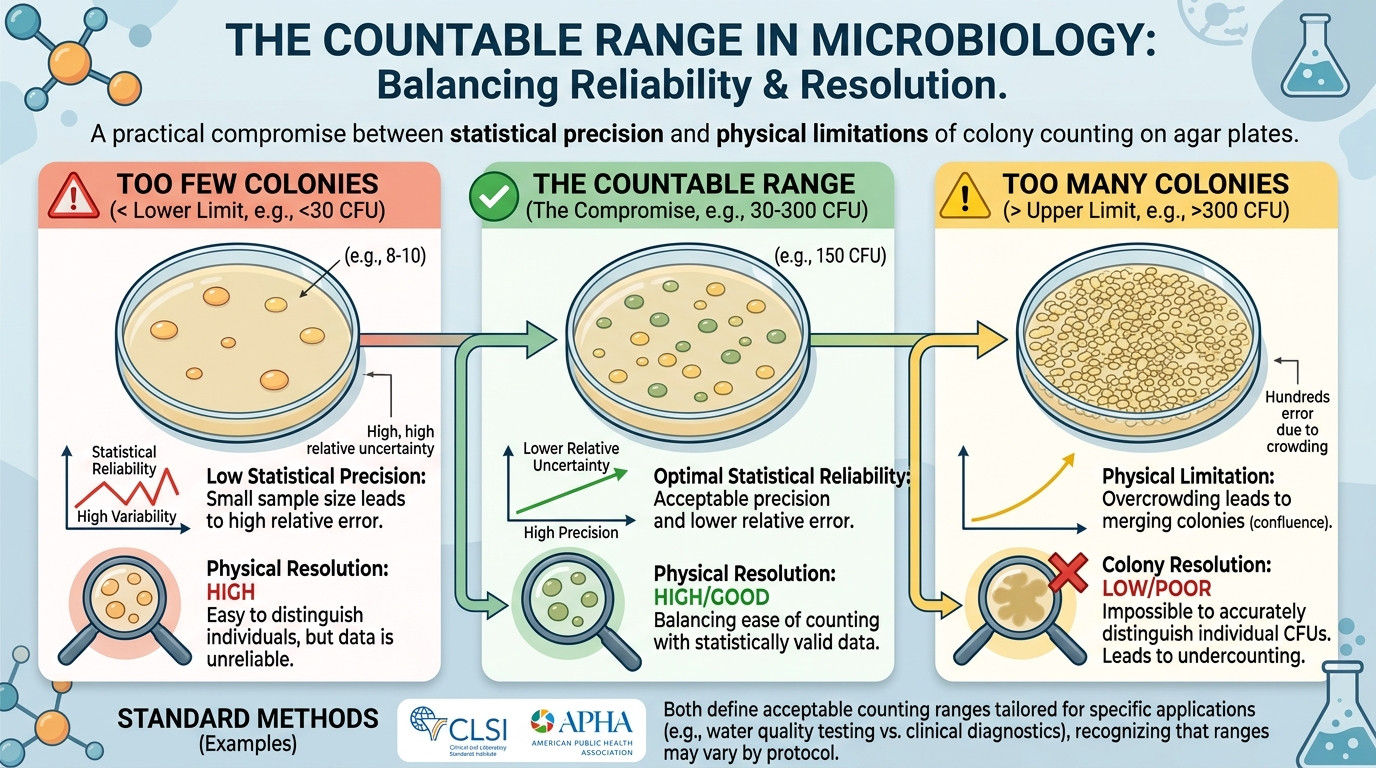

The 30–300 Rule
Statistically valid plate counts require 30 to 300 colonies. Below 30, the Poisson sampling error exceeds 18%, making the result unreliable. Above 300, colonies merge (confluent growth) and individual enumeration becomes impossible. A well-designed dilution series places at least two adjacent dilutions within this window, providing a built-in verification of counting accuracy.
3. The Mathematics Behind Every Dilution Series
Concentration at Step n
For 10-fold dilutions (DF = 10), after 6 steps: C₆ = C₀ × 10⁻⁶. If the original concentration is 10⁹ CFU/mL, step 6 contains 10³ CFU/mL — well within counting range when 0.1 mL is plated (yielding ~100 colonies).
The CFU/mL Master Formula
This equation converts raw colony counts into meaningful concentration data. The dilution factor at any step equals (1/DF)ⁿ. For step 7 of a 10-fold series: dilution factor = 10⁻⁷. If 156 colonies are counted from 0.1 mL plated at 10⁻⁷: CFU/mL = 156 / (0.1 × 10⁻⁷) = 1.56 × 10¹⁰.
Volume Calculations
For a 10-fold dilution with 10 mL total: transfer = 10/10 = 1 mL into 9 mL diluent. These relationships are the mathematical backbone of every microbiology serial dilution example.

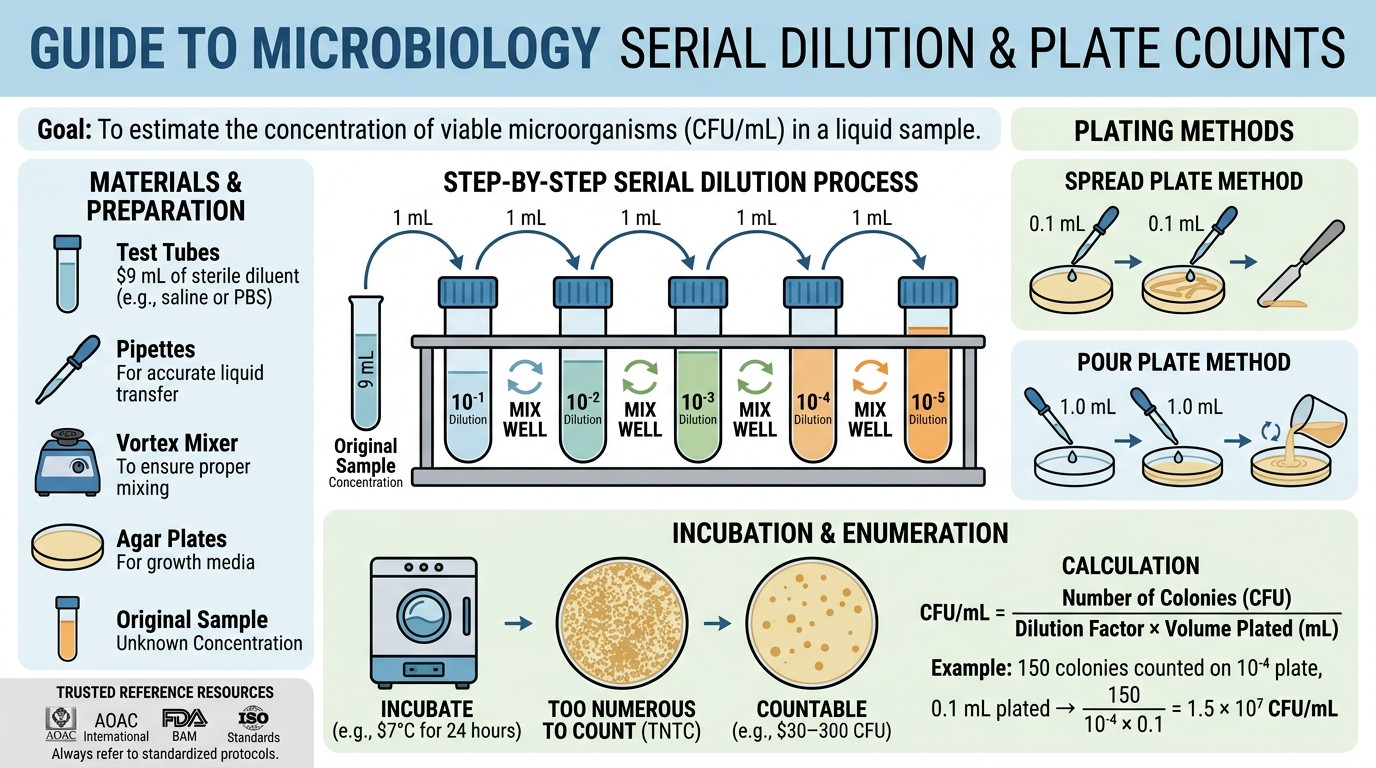

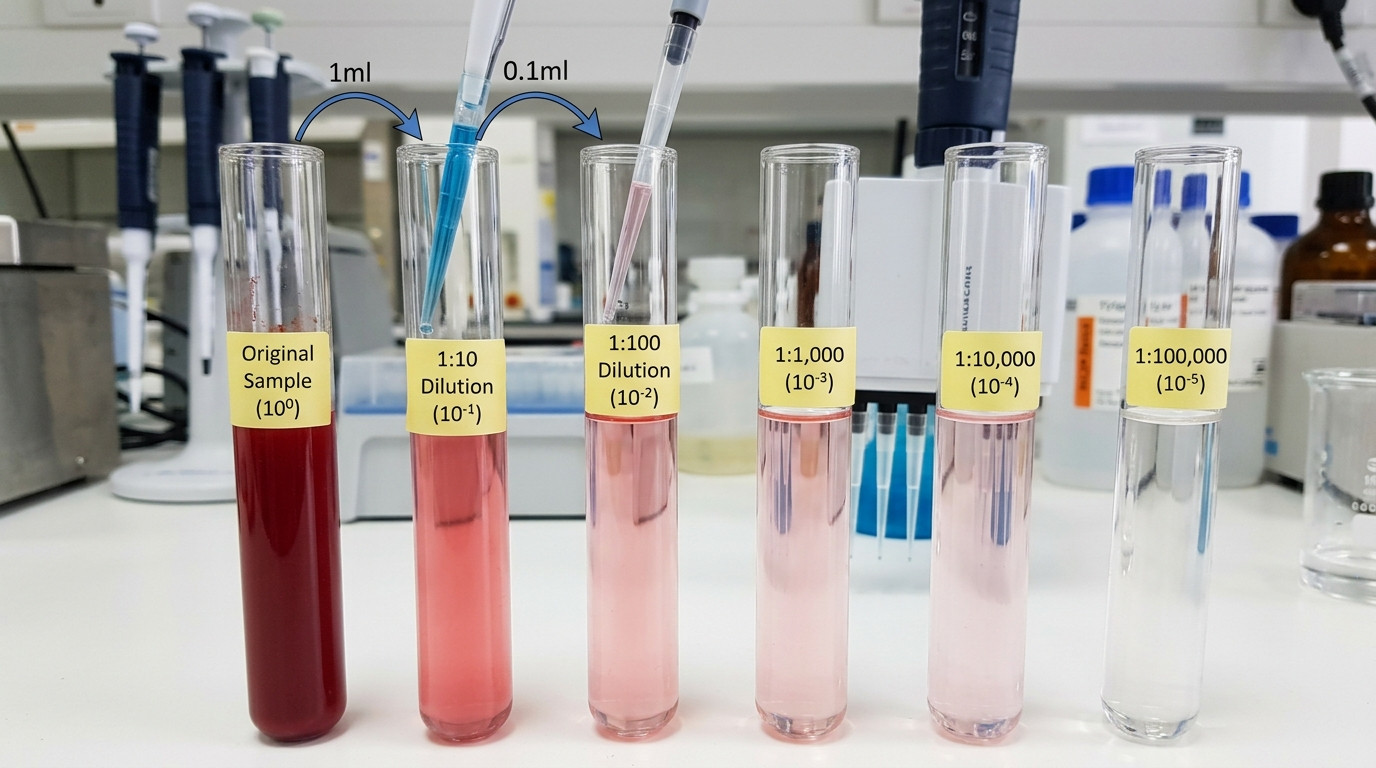

4. Step-by-Step Bench Procedure
- Calculate the expected concentration range from previous data or literature. Design the series to place 2–3 dilutions within the 30–300 countable window.
- Label all tubes and plates with dilution numbers (10⁻¹ through 10⁻⁸), sample ID, date, and technician initials.
- Add 9 mL sterile diluent (0.85% saline, PBS, or 0.1% peptone water) to each tube using aseptic technique.
- Transfer 1 mL of sample into the 10⁻¹ tube using a sterile pipette. Vortex for 5 seconds.
- With a fresh sterile pipette, transfer 1 mL from 10⁻¹ to 10⁻². Vortex. Repeat through all remaining tubes, always using new pipettes.
- Plate 0.1 mL from selected dilutions onto pre-labeled agar plates. Spread evenly using a sterile glass or disposable spreader. Plate in duplicate for statistical reliability.
- Incubate inverted at the appropriate temperature (37°C for most pathogens, 25–30°C for environmental organisms) for 18–48 hours.
- Count colonies on plates with 30–300 colonies. Apply the CFU/mL formula. Report in scientific notation (e.g., 1.9 × 10⁹ CFU/mL).
5. Free CFU Calculator Tool
Enter your colony count, volume plated, and dilution factor to instantly calculate the original sample concentration in CFU/mL.
CFU/mL Calculator
Result
6. Example #1 — E. coli Overnight Culture Plate Count
Scenario
Sample: Overnight LB broth culture of E. coli K-12. Expected: ~10⁹ CFU/mL. Method: 10-fold series, 8 steps. Spread plate 0.1 mL on TSA at 37°C for 24h.
| Dilution | Plate 1 | Plate 2 | Average | Status |
|---|---|---|---|---|
| 10⁻⁶ | TNTC | TNTC | — | Too dense |
| 10⁻⁷ | 187 | 193 | 190 | Countable ✓ |
| 10⁻⁸ | 18 | 21 | 20 | Too few |
Result: 1.9 billion CFU/mL — typical for dense overnight growth. This is the most fundamental microbiology serial dilution example that every student learns first.
7. Example #2 — Drinking Water Coliform Testing
Scenario
Sample: Tap water after main break repair. Limit: EPA requires <1 CFU/100 mL. Method: Membrane filtration + 10-fold dilution backup.
| Dilution | Vol. Plated | Count | CFU/mL |
|---|---|---|---|
| Neat | 1 mL | TNTC | — |
| 10⁻¹ | 1 mL | 256 | 2,560 |
| 10⁻² | 1 mL | 28 | 2,800 |
Per 100 mL: ~256,000 CFU/100 mL. Verdict: NOT SAFE — triggers immediate boil-water advisory. This microbiology serial dilution example demonstrates regulatory water testing.
8. Example #3 — Food Safety (Ground Chicken APC)
Scenario
Sample: 25 g ground chicken in 225 mL peptone water (initial 10⁻¹). Limit: APC <10⁶ CFU/g. Method: 10-fold series from homogenate.
| Dilution | Count | CFU/g | Status |
|---|---|---|---|
| 10⁻⁴ | 342 | 3.4 × 10⁶ | Slightly high |
| 10⁻⁵ | 38 | 3.8 × 10⁶ | Countable ✓ |
Verdict: APC of 3.8 × 10⁶ CFU/g EXCEEDS the 10⁶ limit — product rejected. This microbiology serial dilution example shows how food testing protects consumers.
9. Example #4 — Soil Bacteria Enumeration
Scenario
Sample: 1 g organic farm topsoil in 9 mL saline. Expected: 10⁸–10⁹/g. Media: R2A agar, 25°C for 5 days.
| Dilution | Count | CFU/g |
|---|---|---|
| 10⁻⁷ | 287 | 2.87 × 10⁹ |
| 10⁻⁸ | 31 | 3.1 × 10⁹ |
Average: ~3 billion bacteria per gram — excellent soil health. This microbiology serial dilution example is essential for agricultural and ecological research, where microbial biomass indicates soil fertility and organic matter decomposition activity.
10. Example #5 — MIC Determination (Ampicillin vs. S. aureus)
Scenario
Organism: Clinical MRSA isolate. Drug: Ampicillin, 2-fold series from 128 µg/mL. Method: Broth microdilution per CLSI M07.
| Conc. (µg/mL) | 128 | 64 | 32 | 16 | 8 | 4 | 2 | 1 | 0.5 |
|---|---|---|---|---|---|---|---|---|---|
| Growth | — | — | — | — | — | — | — (MIC) | + | + |
MIC = 2 µg/mL. Per CLSI breakpoints for S. aureus, ampicillin resistance threshold is ≤0.25 µg/mL. This isolate is RESISTANT. Alternative antibiotics needed. This specialized microbiology serial dilution example directly impacts patient care decisions.
11. Example #6 — Clinical Urine Culture
Scenario
Sample: Midstream urine from patient with suspected UTI. Threshold: ≥10⁵ CFU/mL indicates infection. Method: Calibrated loop (0.001 mL) on CLED agar, 37°C for 24h.
The calibrated loop technique is a simplified microbiology serial dilution example where the loop itself delivers a fixed volume (0.001 mL = 1 µL), effectively creating a built-in dilution. If 150 colonies grow from a 0.001 mL inoculum:
Result: 1.5 × 10⁵ CFU/mL — POSITIVE for UTI. Organism identification and antibiotic susceptibility testing initiated. This clinical microbiology serial dilution example is performed millions of times daily in hospital laboratories worldwide.
12. Example #7 — Viral Plaque Assay (Bacteriophage T4)
Scenario
Sample: T4 phage stock. Method: 10-fold dilution series, plated in soft agar overlay on E. coli lawn, 37°C overnight.
| Dilution | Plaques | PFU/mL |
|---|---|---|
| 10⁻⁸ | TNTC | — |
| 10⁻⁹ | 78 | 7.8 × 10¹⁰ |
| 10⁻¹⁰ | 8 | — |
Titer: 7.8 × 10¹⁰ PFU/mL. The mathematics are identical to bacterial plate counting — the only difference is counting plaques (clear zones) instead of colonies. This microbiology serial dilution example extends the technique to virology, demonstrating its universal applicability across all microorganism types.
13. Common Errors That Invalidate Results
8 Critical Errors to Avoid
- Reusing pipettes/tips: Causes carryover — always use fresh, sterile tips for each transfer step.
- Poor mixing: Cells settle within seconds. Vortex each tube for ≥5 seconds immediately before aspirating.
- Delayed plating: Cells grow or die in tubes at room temperature. Plate within 20–30 minutes.
- Incorrect volumes: 0.9 mL vs. 1.0 mL changes DF by 10%. Calibrate pipettes per ISO 8655.
- Contamination: Non-target organisms produce spurious colonies. Work aseptically near a flame or in a biosafety cabinet.
- Counting errors: Mark each colony with a marker to avoid double-counting. Use a colony counter with magnification.
- Using wrong media: Selective media (MacConkey, XLD) count only target organisms. General media (TSA, R2A) count total populations. Match medium to objective.
- Ignoring the 30–300 rule: Reporting counts from plates with 12 or 450 colonies introduces large statistical or physical errors.
Related Calculator Tools
- Serial Dilution Table Generator
Create printable dilution protocolsOpen - General Dilution Calculator
C₁V₁=C₂V₂ for all dilutionsOpen - Molarity Calculator
Antibiotic stock preparationOpen
14. Frequently Asked Questions
A microbiology serial dilution example is a detailed demonstration of systematically reducing microbial concentration through sequential dilution steps until colonies become countable (30–300 per plate). Each step reduces density by a fixed factor — typically 10-fold — creating a geometric progression from billions of cells per milliliter down to tens or hundreds. The technique is the standard method for quantifying viable bacteria, fungi, and viruses in clinical, food, environmental, and research laboratories because direct counting of dense populations is physically impossible with standard instruments.
10-fold dilutions align with base-10 logarithmic reporting (10⁶, 10⁵, 10⁴…), where each step changes the exponent by exactly 1. This makes calculations intuitive and reduces arithmetic errors. The 1 mL into 9 mL ratio is also easy to execute accurately with standard laboratory pipettes. However, 2-fold dilutions are preferred for MIC testing where finer resolution between adjacent concentrations is clinically necessary. The choice of dilution factor depends on the application — the mathematics work identically regardless.
The universally accepted range is 30 to 300 colonies per standard-sized plate (100 mm diameter). Below 30, Poisson sampling error exceeds 18%, making results statistically unreliable. Above 300, colonies merge and cannot be individually enumerated, causing systematic undercounting. Some protocols (particularly FDA BAM methods) use 25 to 250. A properly designed series ensures at least two dilutions fall within the countable window, providing a cross-check between adjacent levels.
Reusing pipettes causes carryover contamination. Liquid adhering to the exterior of a used tip contains cells from the more concentrated tube. When inserted into the next tube, these cells dissolve into the diluent and inflate the concentration beyond what the dilution factor predicts. This error compounds multiplicatively through every subsequent step, progressively destroying the geometric accuracy of the entire series. Fresh, sterile pipettes or disposable tips for each transfer eliminate this systematic bias completely.
Common diluents include 0.85% sterile saline, phosphate-buffered saline (PBS, pH 7.2), and 0.1% peptone water. Peptone water is preferred when cell viability must be maintained during the dilution process because it provides trace nutrients. All diluents must be isotonic (matching cellular osmotic pressure) to prevent lysis of sensitive organisms, and they must be sterile to avoid introducing contaminants. Pure distilled water is hypotonic and can kill Gram-negative bacteria through osmotic shock.
Plate within 20 to 30 minutes. Bacteria in dilute suspension either continue growing (if nutrients are available in the diluent) or die (from starvation, oxidative stress, or osmotic imbalance) at room temperature. Delays of even one hour can alter counts by 10–50% depending on the organism. If immediate plating is impossible, hold dilution tubes on ice (4°C) to slow metabolic activity, but recognize this is a temporary holding measure, not a substitute for prompt plating.
TNTC stands for “Too Numerous To Count” — a plate with more than 300 colonies where individual enumeration is impossible due to confluent or merging growth. TNTC plates confirm that the sample concentration exceeds the countable range at that dilution but cannot be used for quantitative CFU calculations. The next higher dilution should yield a countable plate. If all dilutions produce TNTC, the series must be repeated with additional dilution steps to reach the 30–300 window.
Yes — the mathematical principles are identical. Viral titers are determined using plaque assays (reporting PFU/mL, plaque forming units) or TCID₅₀ methods. Instead of counting bacterial colonies on agar, you count clear zones (plaques) in a cell culture monolayer where viral infection has lysed the host cells. The dilution series, volume calculations, and back-calculation formulas follow the same geometric progression. Our seventh worked example demonstrates this application with bacteriophage T4.
CFU (Colony Forming Units) counts only viable, culturable cells that can divide and form visible colonies on agar. Dead cells, dormant cells, and viable-but-non-culturable (VBNC) organisms are excluded. Total cell counts obtained by direct microscopy (hemocytometer, Petroff-Hausser chamber) or flow cytometry include all cells regardless of viability. CFU counts are typically 10 to 1000 times lower than total counts because many cells in any population are dead or non-culturable under the conditions used.
Weigh the solid (typically 10 g or 25 g per FDA BAM protocol) and homogenize in a measured volume of sterile diluent using a stomacher bag (for food) or vortex/blender (for soil). For example, 10 g in 90 mL creates an initial 1:10 (10⁻¹) dilution — this homogenate becomes the starting point. Subsequent 10-fold dilutions proceed normally using the liquid homogenate. Final results are reported as CFU per gram rather than per milliliter. Thorough homogenization is critical to release bacteria trapped within food particles or soil aggregates.
The most common cause is inadequate mixing. Bacteria settle rapidly in suspension — within 10 seconds of standing still, the top and bottom halves of a tube can differ in cell density by 50% or more. Vortex each tube for at least 5 seconds immediately before aspirating the aliquot. Other causes include uneven spreading on the plate surface, air bubbles trapped under the agar, pipetting technique errors, and static charge on pipette tips that retains small volumes. Consistent technique across all steps minimizes replicate variability.
Spread plate is now the more common method. The inoculum (0.1 mL) is pipetted onto pre-solidified agar and spread with a sterile spreader. Colonies grow on the surface, making them easy to count and pick for further testing. Pour plate mixes inoculum with molten agar (45–50°C) before pouring — colonies grow both on and within the agar. Spread plates are preferred because they avoid exposing heat-sensitive organisms to warm agar and produce surface colonies that are easier to enumerate and subculture.
Design the series to place 2–3 dilutions within the 30–300 range. Overnight broth cultures (~10⁹ CFU/mL) require 7–8 ten-fold steps. Environmental water might need 3–5 steps. Soil (10⁸–10⁹/g) requires 7–9 steps. Clinical urine (10³–10⁸/mL) may need 3–6 steps. Estimate the expected concentration from previous experience or published literature, then add 1–2 extra steps as insurance. Over-diluting wastes materials; under-diluting produces only TNTC plates and requires repeating the entire experiment.
Yes — MIC testing uses 2-fold serial dilutions of antibiotic (not bacteria). A concentrated drug stock is halved at each step (128, 64, 32, 16, 8, 4, 2, 1 µg/mL), then each well is inoculated with a standardized bacterial suspension (typically 5 × 10⁵ CFU/mL). After 16–20 hours of incubation, the lowest concentration showing no visible turbidity is the MIC. This value is compared to CLSI breakpoint tables to determine whether the organism is susceptible, intermediate, or resistant, directly guiding antibiotic prescribing.
The CFU calculator on this page converts colony counts to concentrations instantly. For complete protocol generation, visit our serial dilution calculator which creates printable step-by-step tables. The full DilutionsCalculator.com suite includes general dilution (C₁V₁=C₂V₂), molarity, mg/mL, PPM, and peptide reconstitution calculators — all free and mobile-responsive.
15. Conclusion — From Theory to Bench Mastery
The microbiology serial dilution example is the most universally practiced laboratory technique in all of microbiology. From a student’s first plate count to a clinical laboratory’s daily urine cultures, from an FDA food safety inspection to a soil ecologist’s biomass survey, the same elegant principle applies: dilute systematically, plate at the right density, count what you can see, and multiply back to determine what was originally there.
This guide has presented seven complete worked examples — E. coli overnight culture, drinking water coliforms, food product aerobic plate counts, soil bacteria, antibiotic MIC determination, clinical urine culture, and viral plaque assay — demonstrating how the same mathematical framework adapts to every sample type and regulatory context. We provided the three core formulas (concentration at step n, CFU/mL master equation, and volume calculations), a free CFU calculator, a detailed eight-step bench procedure, and answers to fifteen expert-level questions.
The key principles to carry forward are: always target the 30–300 countable window; always use fresh pipettes between steps; always vortex before transferring; always plate within 30 minutes; and always verify by checking that adjacent dilutions give consistent results (within 2-fold). With these habits and the digital tools provided, every microbiology serial dilution example you perform will produce data you can trust. Bookmark this page and our complete calculator suite for reliable reference at every bench session.
